Products

Online AEGIS

Current：Products>Deck air compressors>Deck air compressors>75KW Air compressor

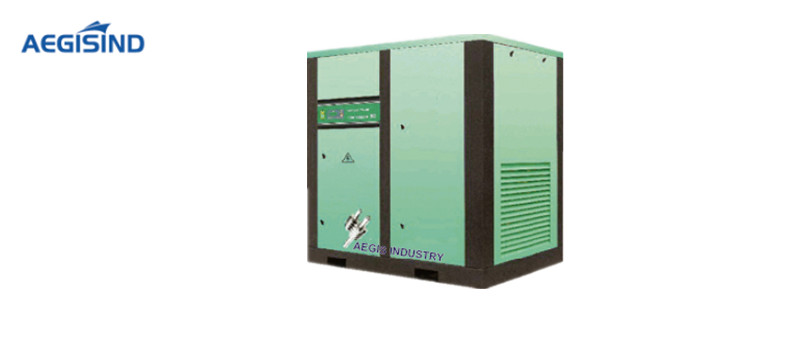

Product Name：75KW Air compressor

Downloads

Product Consulting Order

Introduction
Parameters
Installation design
Services

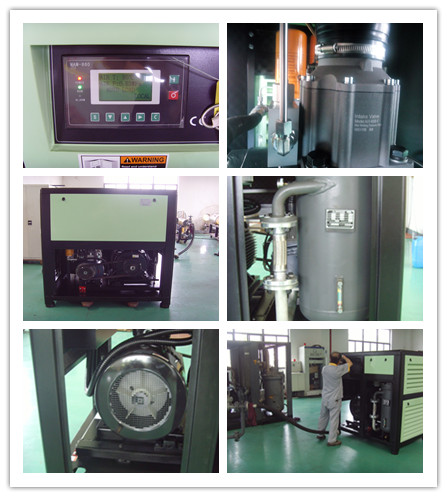

Rotary Screw Air Compressors With Belt Drive 5-100hp(4-75kw)

AIR END.(By Singapore corporation headquarters)

AIREND s is adopt upgrade version mainframe which introduce optimize type-line, high –quality SKF over loading bearing. So, our main parts have excellence dependability and durability

PLC intelligent control system.(By Singapore corporation headquarters)

Human-based Chinese/English user interface which have many function: remote control, several compressors interconnected running at the same time, automatic protection, automatic protective warming, unattended automatic running can be handled easily.

Automatic regulatory inlet value

Adopting 0-100% inlet proportional regulator which stable work pressure of compressor and save energy.(provided by European corporation headquarters)

Specific electrical motor or compressor

IP55 Fortify scale

Special prepared of SKF over-loading bearing

Special structure design

Special design of belt device with automatic tightly

Automatic change belt tight

Deduce the times of maintenance

Raise drive efficiency

Safety design and striking marker

Special design of drive device which is completely isolation insured the safety of operator and maintenance.

Closed cooling system which is formed with new-model motor and special angle fans save energy and reduce noise.

Centralized wind power and palpable cooling effects.

Joint devices which is adopt the standard of America auto industry Association eliminate line leakage.

The best oil-gas separator is formed with Separation core of oil-gas which is adopt patent technology—double layer hundred-folds model and Separation pot of oil-gas which is wheeled around and high velocity impact. This equipment is adopt specific semisynthetic cooling-oil. So, the oil content of compressed air is reduced 2-3ppm.

AEGIS CHINA specific cooling-oil MSDS which is conformed the quality to ISO14001 protect environment standard, have the characteristic of resistant to high temperature and oxidation. So, the cooling-oil is matched with the compressed air and have the best cooling and lubrication in larger difference in temperature, make sure the quality of oil-gas separated, extent the life of spare parts.

Introduction: If you would known details of the content, Please read the page of Technology parameter or give telephone to AEGIS CHINA.

AEGIS INDUSTRY (SHANGHAI) CO.,LTD

Address:No.26 Zhoukang Road, Pudong Shanghai China

Post code:201318

Tel:86-021 2097 5028

Fax:86-021 2097 5062

E-mail:sales@aegisind.com service@aegisind.com

website:www.dollk.cn/en

FAD measured in accordance with ISO1217(GB/T3852).
Outlet temperature:≤40℃，Ambient temperature +8-10℃.
Specifications in this catalog are subject to change by AEGIS CHINA without notice.

Ⅰ.Install
The installation of compressor should follow local relevant laws and regulations, and observe the following regulations strictly.
1. Hang and transport the compressor should use the jack-up equipment which bearing ability greater than compressor’s weight, the speed of hang and transport the compressor and the acceleration should be confined to the range permitted.
2. Try to install the compressor in the cool, clean, ventilate place, guarantee air is clean and its moisture c-ontent that the compressor sucks are minimum.
3. The air that the compressor sucks does not allow containing flammable gas and corrosive gas, avoiding causing the explosion or inside corrosion.
4. Air-cooled machine should have exhaust fan or wind-lead pipe to lead hot air out of house, avoid it circulates to air inlet.
5. The discharge of the sewage, waste oil of the compressor should be in accordance with the regulation of the local environmental protection department.
6. This machine uses and exchanges power 380V, 60Hz for three phases, the electric wire of the compressor must to match, and should install safety devices such as air switch, fuse silks, etc. In order to guarantee security, the electric equipment must be reliable grounding.

Ⅱ.Debug and Run (pay special attention!)
1. The new machine must be debugged by debugging person who is appointed or approved by our company.
2. Should confirm nobody in the aircrew before starting the machine, check whether to leave over the article and tool or not, shut the aircrew door; Should notify aircrew personnel take care first when starting the machine;
3. At the time of the running-in, check the operation direction of the compressor strictly as finding that overturning should shut down immediately , cut off power , is it start the machine again to replace three-phase line two any , will damage compressor (factory power it need notice to overhaul each time! );
4. Compressor can’t run in higher exhaust pressure than stipulate on nameplate, otherwise, the overload of the electrical machinery will be burned out.
5. While the compressor is controlled by long-range, the machine may be started at any time, please listed and reminded.
6. When there is anything wrong with the compressor or has some unsafe factors exist, make sure not to start the machine by force. Please cut off the power at the moment, and make the remarkable mark in it.
7.There are high-speed gearing and high-temperature parts when the compressor is running. Do not open the door of the compressor optionally.

Ⅲ.Preserve and maintain
The maintenance of the compressor must be done with the guidance by the personnel who have the qualifications.
1. Compressed air and electric apparatus was danger, while overhauling or maintaining should confirm the power has already been cut off, and office hang " overhaul " or " switch on is forbidden " caution signat the place of power, in case others switch on and leading to injury.
2. Shut down and maintain the compressor after waiting for the whole compressor to cool and compressed air to release safely, and the worker should be keep clear of any gas vent in the compressor system as he can as possible, and close the isolate valve correspondingly.
3. While washing the unit spare parts, should use safe solvent of no corrosiveness, forbid using inflammable and explosive and volatilize cleaner.
4. After the compressor runs for some time, please examine safety valve and other protect system regularly, guarantee it sensitive and reliable, generally examine once every year.
5. The accessories of the compressor must be offered by standard factories, its screw oil must appoint the special-purpose oil of screw compressor of our company, and two kinds of oil is forbid to use together, otherwise, it will cause system collect burnt than lead to the great accident.

Warn
The compressor should be operated by the regular personnel; the worker should read over and understand these contents, follow the working routine, security precautions and maintain the norm of the service manual. The disobey behaviors to the safe precautions may cause the serious consequence.

First of all, thanks for you chose the AEGIS CHINA rotary screw air compressors.The products of our company have already passed strict inspection and test before dispatching from the factory, but in order to guarantee machine's safety, reliability and durability when put into operation, make sure to read a manual in detail before using a machine, fully grasp the screw air compressor’s operate norm and skill, make its equipment in good working state for a long time.

The fixed clause apply to the compressor products of our company in this manual, the fittings manual (such as motor, electric apparatus) attached, is suitable for this auxiliary products too.Users should understand the local relevant laws and regulations of compressors’ install and use, andobserve in this manual, when the clauses are not the same as the local relevant laws and regulations (especially about the security), should carry out with the safer one.

The operator has responsibility to guarantee the machine runs on terms that safely. If the operator think that the machine to have unsafe hidden dangers, should overhaul it in time.From day to buy the products of AEGIS CHINA, you will get AEGIS CHINA's first-class after-sale service, and for the convenience of you to get in touch with us, we offer the address, telephone of our company as follows:

AEGIS INDUSTRY (SHANGHAI) CO.,LTD

Address:No.388 Hengqiao Road, Pudong Shanghai China

Post code:201318

Tel:+86 21 2097 5028

Fax:+86 21 2097 5062

Phone:+86 136 716 88208

E-mail:service@aegisind.com

website:www.dollk.cn/en

Please keep a manual properly, in order to check at any time and use.

The AEGIS CHINA has the right to revise or improve the products, but does not carry on the corresponding revising or improved obligation to the products that had left the factory.
