LSHC-50A air compressor is mainly used to start both the marine and land diesel engines and also as the general compressed air source for pressure test and other high pressure applications.
Structure
type:

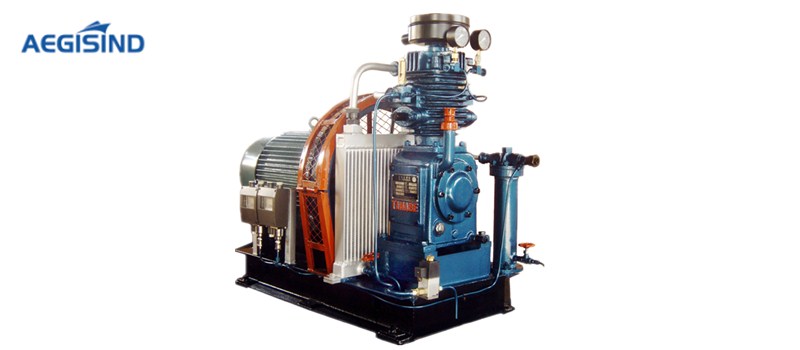

LSHC-50A air compressor is vertical air-cooled 2-class compressor. The compressor has compact structure,light weight and small volume.And the compressor adopts aluminum alloy plate cooler,it has good cooling performance and it is reliable-operation in marine conditions.
Unit description:
1.This can be direct driven or belt driven,or diesel engine belt driven,has a common base with oil-water separator,pressure controller,unloading electromagnetic valve,and it also can match temperature control device, shock absorber,exhaust hose and so on.
2.This can match wall-hanging electric cabinet,which can realize automatic unloading, automatic starting, automatic stopping,motor overload,exhaust high temperature alarm and stop and so on.
| LSHC-50A air compressor principal specification | |||||
| Compressor model | LSHC-50A | ||||
| Type | Vertical、air-cooled、2 stage compression | ||||
| Number of cylinder | 1 | ||||
| Cylinder diameter | first stage(mm) | 115 | |||
| second stage(mm) | 100 | ||||
| Piston stroke(mm)） | 76.2 | ||||
| Pressure rating(Mpa) | 3 | ||||
| Rotation rating(r/min) | 900 | 1000 | 1200 | 1500 | |
| Quantity of air supply(m3/h) | 25 | 30 | 36 | 45 | |
| shaft power(kw) | 7 | 7.5 | 9 | 10.4 | |
| Suction filtration method | screened type | ||||
| Lubricating system | Splash lubrication | ||||
| Capacity of crank case(L) | 2 | ||||
| Rotation direction | Counter-clockwise | ||||
| Method of driving | Direct coupling or V-belt drive | ||||
| Type of un-loader | Manual un-loader or magnetic un-loader valve | ||||
| Motor | Model | Y160L-8-H | Y160M-6-H | Y160-6-H | Y160M-4-H |
| Power Rating(kw) | 7.5 | 7.5 | 11 | 11 | |
| Rotation rating(r/min) | 870 | 970 | 1170 | 1460 | |
| Voltage/Frequency(V/Hz) | 440/60 | 380/50 | 440/60 | 380/50 | |
| Dimension(mm) | 1870×680×900 | ||||
| Weight(kg) | 310 | ||||
Placement of Installation and Intake Air
Install the compressor possibly nearest to the site of
service. If site of service lines
scattered, install the compressor collectively around the center of lead to
minimize piping resistance and leakage and save the cost of installation.
Also Please note that well lighted space helps you find
earlier leakage and abnormal as well as perform maintenance service smoothly,
while Quiet environment enables to detect even a slight abnormal sound,
preventing possible troubles.
Ample passage provides and facilities security,
disassembly work and maintenance and inspection. At least, space of 1 meter
should be reserved around the compressor. In most cases air intake includes
dust. It is known by analysis that half of the carbon deposit on the valve is
dust. These faulty conditions would cause
leakage from cylinder or piston, or malfunction of valve, finally efficiency
down and great troubles.
Air Delivery Piping
High temperature rise in delivery pipe line would cause
thermal expansion. Therefore, piping should be installed in such a manner that
it can absorb contraction or expansion.
(1) For this purpose, the use of more than two bends on
the midway of pipe line is recommended. Where one piping section is so long,
the pipes should be supported with appropriate pipe supports.
(2) Arrange delivery pipe as short as possible.
(3) Stop-valve should not be installed in the midway of
delivery pipe. If it is needed to be done, safety valve must be fitted between
the compressor and the stop valve. Safety valve used for this purpose should be
large enough to release all the Compressed air.
Electric Wiring
Wiring must be installed correctly by qualified engineers
or contractors in conformity with applicable codes. Durability and insulation
tests should be done carefully while tools and materials used in wiring must
meet the requirements of standards. Electrical Motor starting method should be
selected according to power facilities of the plant. For details, consult with
contractor or our firm.
