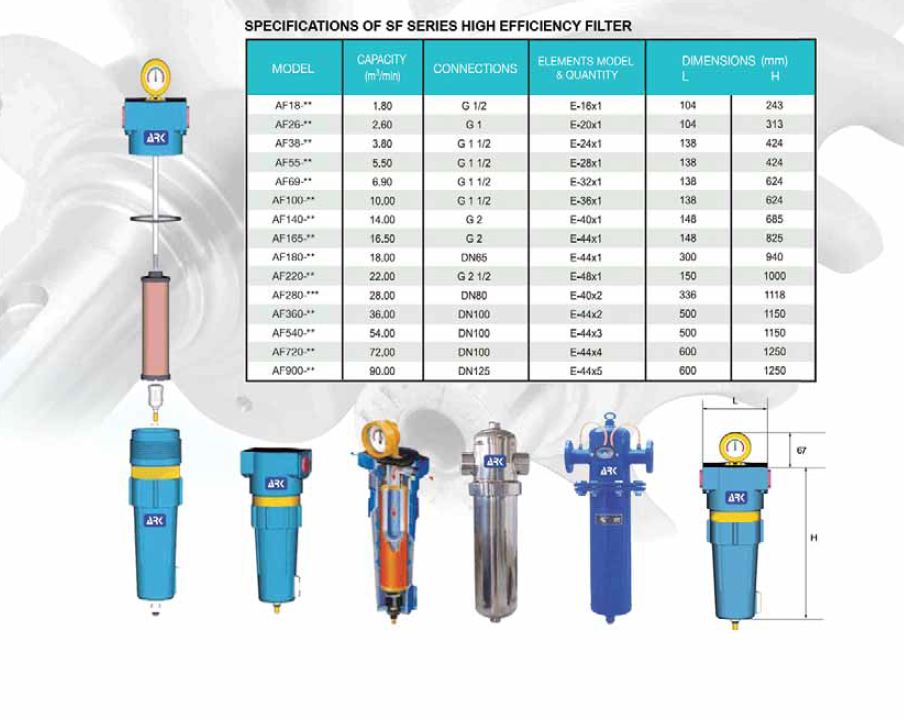

Specifications of Series high efficiency filter |
|||||
|
Model |
Capacity (m3/min) |
Connections |
Elements models & Quantity |
Long (mm) |
High (mm) |
|
AF18-** |
1.8 |
G 1/2 |
E-16×1 |
104 |
243 |
|
AF26-** |
2.6 |
G 1/2 |
E-20×1 |
104 |
313 |
|
AF38-** |
3.8 |
G 1 1/2 |
E-24×1 |
138 |
424 |
|
AF55-** |
5.5 |
G 1 1/2 |
E-28×1 |
138 |
424 |
|
AF69-** |
6.9 |
G 1 1/2 |
E-32×1 |
138 |
624 |
|
AF100-** |
10 |
G 1 1/2 |
E-36×1 |
138 |
624 |
|
AF140-** |
14 |
G 2 |
E-40×1 |
148 |
685 |
|
AF165-** |
16.5 |
G 2 |
E-44×1 |
148 |
825 |
|
AF180-** |
18 |
DN65 |
E-44×1 |
300 |
940 |
|
AF220-** |
22 |
G 2 1/2 |
E-48×1 |
150 |
1000 |
|
AF280-** |
28 |
DN80 |
E-40×2 |
336 |
1118 |
|
AF360-** |
36 |
DN100 |
E-44×2 |
500 |
1150 |
|
AF540-** |
54 |
DN100 |
E-44×3 |
500 |
1150 |
|
AF720-** |
72 |
DN100 |
E-44×4 |
600 |
1250 |
|
AF900-** |
90 |
DN100 |
E-44×5 |
600 |
1250 |
First of all, thanks for you chose the AEGIS CHINA products.The products of our company have already passed strict inspection and test before dispatching from the factory, but in order to guarantee machine's safety, reliability and durability when put into operation, make sure to read a manual in detail before using a machine, fully grasp the screw air compressor’s operate norm and skill, make its equipment in good working state for a long time.
The fixed clause apply to the compressor products of our company in this manual, the fittings manual (such as motor, electric apparatus) attached, is suitable for this auxiliary products too.Users should understand the local relevant laws and regulations of compressors’ install and use, andobserve in this manual, when the clauses are not the same as the local relevant laws and regulations (especially about the security), should carry out with the safer one.
The operator has responsibility to guarantee the machine runs on terms that safely. If the operator think that the machine to have unsafe hidden dangers, should overhaul it in time.From day to buy the products of AEGIS CHINA, you will get AEGIS CHINA's first-class after-sale service, and for the convenience of you to get in touch with us, we offer the address, telephone of our company as follows:
